EL7031-0030 | Stepper Motor Terminal with additional analog inputs · 0 次阅读

Download revision

Download revision 1:

Download revision in Start-up list

Several terminals / modules generate the entry from object 0xF081:01 in the Start-up list automatically (see fig. “Download revision in Start-up list“).

The object 0xF081:01 (Download revision) describes the revision of the terminal / module, e.g. 0x0018000A for EL7201-0010-0024, and is necessary to ensure compatibility.

Please note, that you must not delete this entry from the Start-up list!

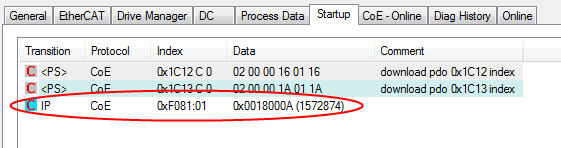

Download revision 2:Fig.133: Download revision in Start-up list
