Threshold Classifier 1Ch

Threshold Classifier 1Ch 1:

Threshold Classifier 1Ch classifies the input values into three different classes: OK, Warning and Alarm according to the configured thresholds.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • Level Ok / Warning: Input values that are less than the configured threshold are classified as OK; input values that are equal to or greater than the configured threshold are classified as Warning.
  • Level Warning / Alarm: Input values that are less than the configured threshold are classified as Warning; input values that are equal to or greater than the configured threshold are classified as Alarm.
  • Tolerance (optional): Tolerance value for the Equal / NotEqual comparisons.

Output values

  • Class: Indicates the class to which the input values belong.
  • Last Event Warning: Indicates the time of the last triggered warning event → the event can be dragged and dropped into the scope chart to display it as a trigger-event.
  • Last Event Alarm: Indicates the time of the last triggered alarm event → the event can be dragged and dropped into the scope chart to display it as a trigger-event.

Standard HMI Controls

For the Threshold Classifier 1Ch algorithm, the following HMI controls are available for generating an Analytics Dashboard:

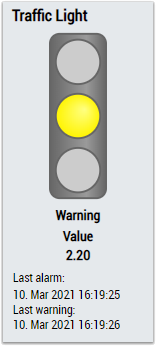

1. The TrafficLight Control visualizes the output values Class, Last Event Warning and Last Event Alarm as well as the input value of the data.

Threshold Classifier 1Ch 2:

2. The MultiState Control visualizes the Class output value, optionally with a smiley.

Threshold Classifier 1Ch 3:
Threshold Classifier 1Ch 4:

3. The Tachometer Control visualizes the input value including the configured limit values.

Threshold Classifier 1Ch 5:

4. The Radial Gauge Control visualizes the input value including the configured limit values.

Threshold Classifier 1Ch 6:

5. The Table Control or Multivalue Control visualizes all output values: Class, Last Event Warning Last Event Alarm.

Threshold Classifier 1Ch 7:
Threshold Classifier 1Ch 8:
Threshold Classifier 1Ch 9:

Alternatively, customer-specific HMI controls can be mapped in the Threshold Classifier 1Ch algorithm using the Mapping Wizard.
