Morphological Operator

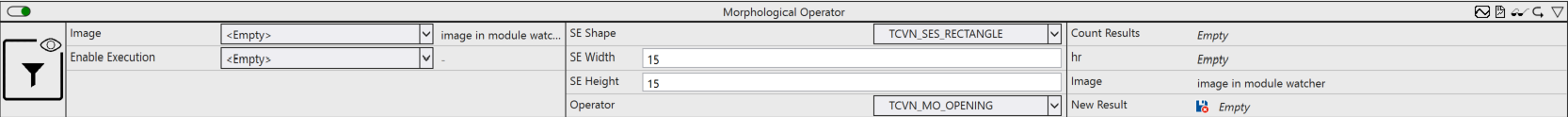

Morphological Operator 1:

Creates a tree item and applies it to the input image using a morphological operator.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • SE Shape: Shape of the tree item.
  • SE Width: Width of the tree item.
  • SE Height: Height of the tree item.
  • Morphological operator.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • Image: Initial image of the algorithm.
  • New Result: (Optional) TRUE if a new result is provided.
