KM2604, KM2614 | Four channel relay modules · 0 次阅读

Dimensions

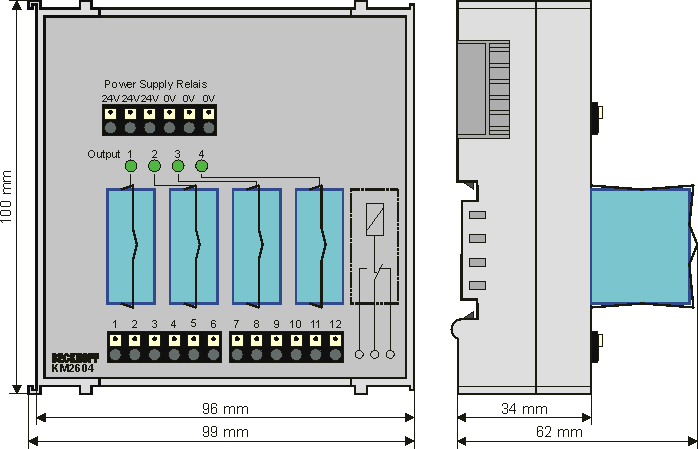

Dimensions 1:
Dimensions

Width of a bus terminal block

Note

Note the maximum number of Bus Terminals

The maximum number of Bus Terminals or terminal modules that can be connected to a Bus Coupler is 64!
An overall width of 80 cm must not be exceeded!
Also ensure that the current consumption of the Bus Terminals/terminal modules from the K-bus does not overload the K-bus power supply of the Bus Coupler.
