Clamping hub

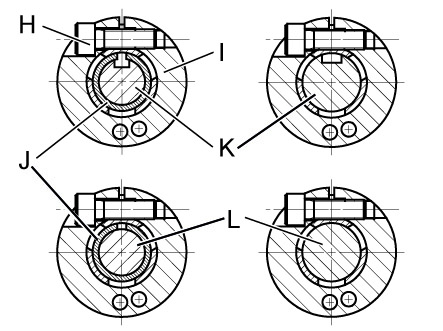

The following table provides a description of the clamping hub:
Infographic | Position | Name |
|---|---|---|
| H | Clamping bolt |
I | Clamping ring | |
J | Spacer sleeve | |
K | Grooved motor shaft | |
L | Smooth motor shaft |
- Clamping screw according to ISO 4762
