Settings

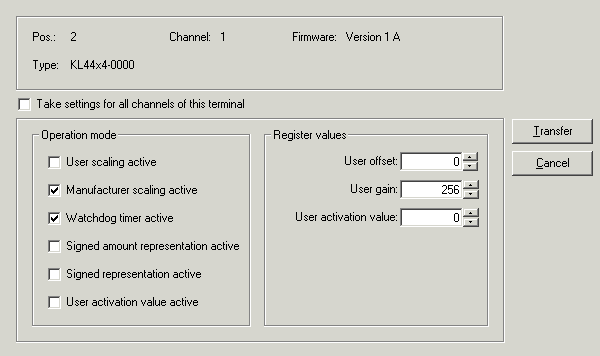

The dialog mask for parameterizing the terminals can be found under Settings
Operation mode
- User scaling active (R32.0)
You can activate user scaling here (default: deactivated).
- Manufacturer scaling active (R32.1)
You can deactivate manufacturer scaling here (default: activated).
- Watchdog timer active (R32.2)
You can deactivate the watchdog timer here (default: activated).
- Signed amount representation (R32.3)
Here you can enable the signed amount representation (default: disabled).
- Signed representation active (R32.5)
Here you can enable the signed representation (default: disabled).
- User activation value active (R32.8)
Here you can enable the user activation value (default: disabled).
Register values
- User offset (R33)
You can specify the user offset here (default: 0).
- User gain (R34)
You can specify the user gain here (default: 256).
- User activation value (R35)
You can specify the user activation value here (default: 0).
