TE2000 | HMI Engineering · 0 次阅读

Application

Structure of a control

Filter

Filters for the display can be set within the control. These filters define the visible area, e.g. to look at a specific symbol that has been changed.

Application 1:

Export

The recorded values can be exported as JSON or CSV via the export function.

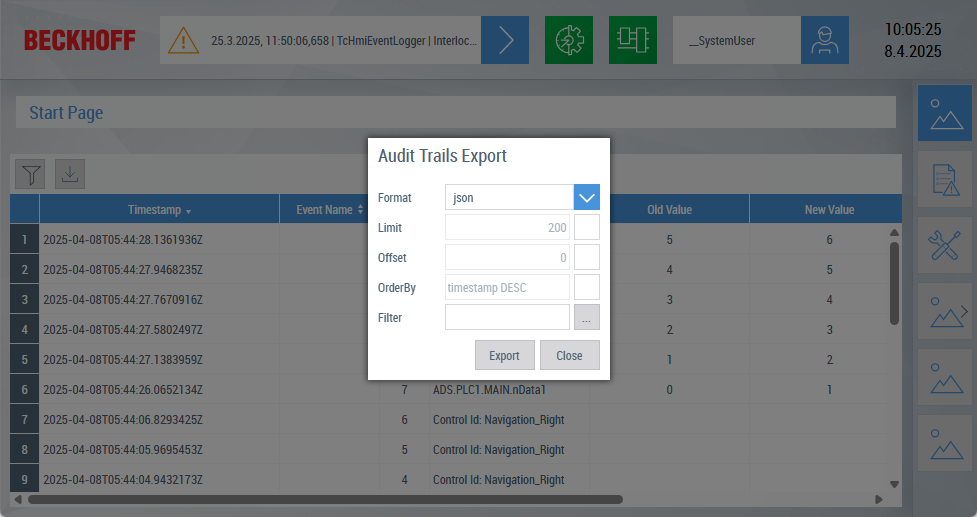

Application 2:

Format

  • Choice of the export format: JSON or CSV.

Limit

  • Limitation of exported entries.

Offset

  • Offset from which the data is exported.

OrderBy

  • Sort the entries "ASC" in ascending order and "DESC" in descending order for the corresponding column.

Filter

  • Filter settings for the data to be exported.
Further Information
