EPP5001-0002

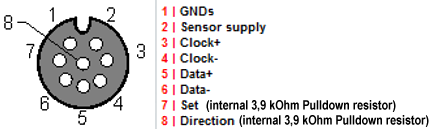

LED indicators - meanings

LED	green	red
Data	Encoder supply switched on (operational state, not short-circuited)	SSI without power supply Open circuit on the SSI data input D+ or D- Data cables interchanged The SSI input is at Low level, no data transfer takes place. Incorrect parameterization in the CoE Wire breakage in the clock lines
CLOCK	No function

LED

green

red

Data

Encoder supply switched on (operational state, not short-circuited)

SSI without power supply

Open circuit on the SSI data input D+ or D-

Data cables interchanged

The SSI input is at Low level, no data transfer takes place.

Incorrect parameterization in the CoE

Wire breakage in the clock lines

CLOCK

No function
