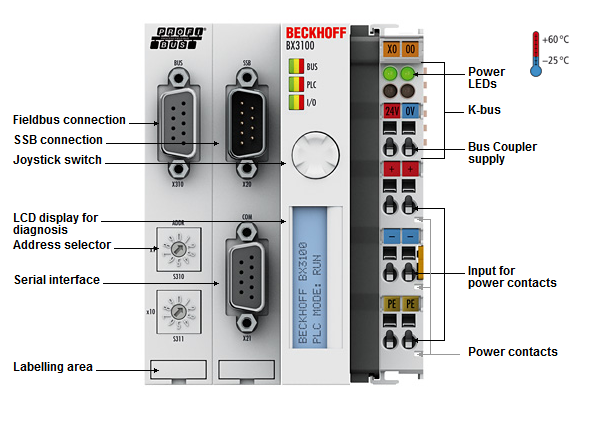

BX3100 - Introduction

The BX3100 Bus Terminal Controller has a PROFIBUS slave interface with automatic baud rate detection up to 12 Mbaud and an address selection switch for address assignment. Inputs and outputs up to 244 bytes can be exchanged with the controller.
