Topology example

Star wiring or a line topology is possible with the CX8190. Beckhoff recommends limiting the number of nodes to 10.

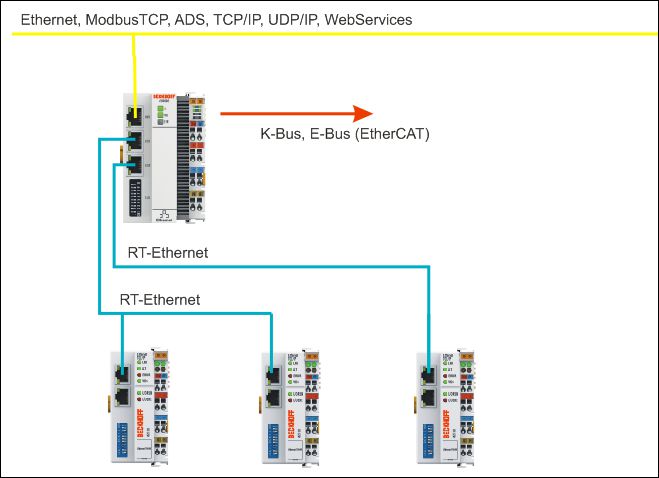

Fig.14: Topology example: CX8190 connected to decentralized Bus Couplers via Realtime Ethernet.
