Topology example

With RS232, a direct connection (peer-to-peer) is only possible between two devices. With RS485 a line topology is possible. Limit the number of nodes to four devices.

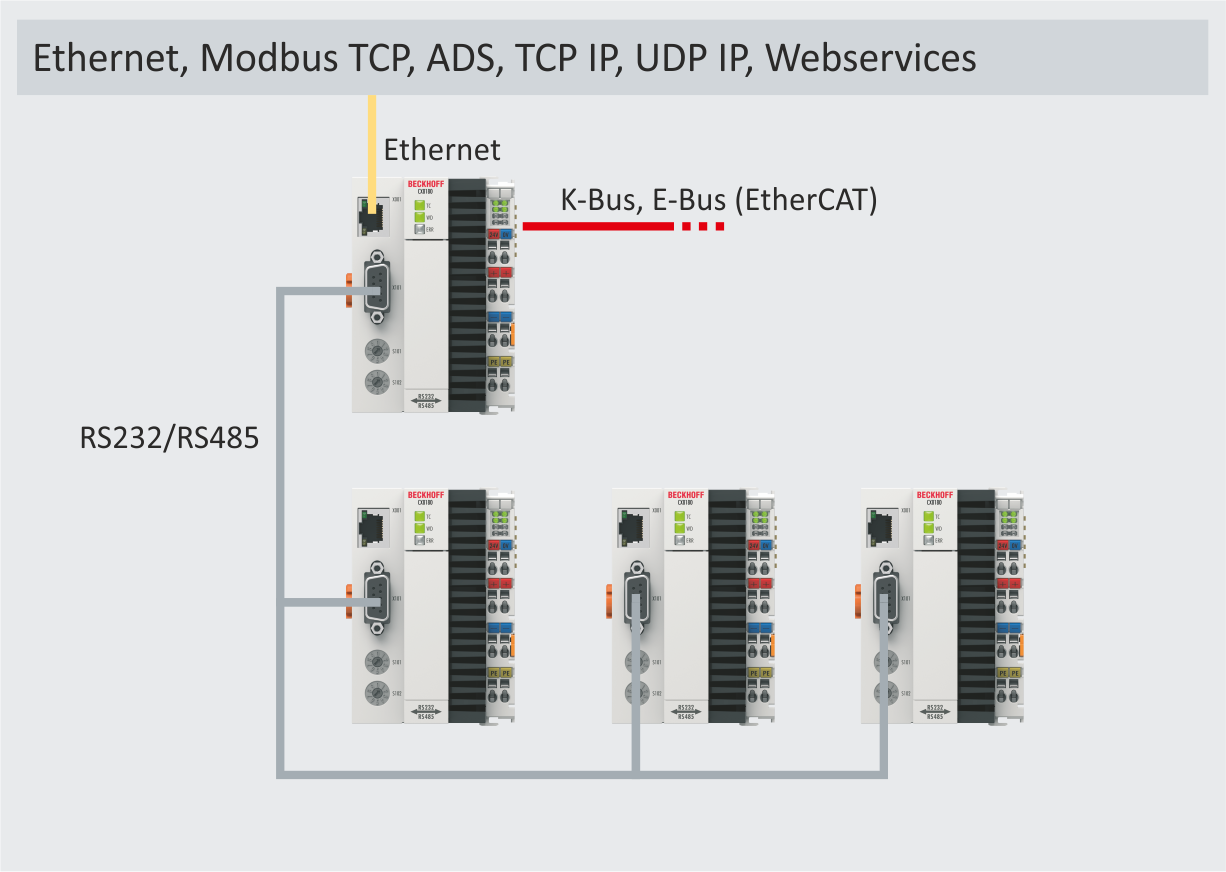

Fig.14: Topology example: CX8180 connected to other CX8180 devices via RS485.
