1. KL2784, KL2794 - Four-channel digital output terminals
  2. Product overview
  3. LED display

LED display

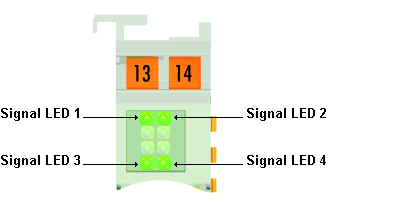

LED display 1:
LED display

LED

Display

Signal LED 1

off

Output 1 switched off

on

Output 1 switched on

Signal LED 2

off

Output 2 switched off

on

Output 2 switched on

Signal LED 3

off

Output 3 switched off

on

Output 3 switched on

Signal LED 4

off

Output 4 switched off

on

Output 4 switched on
