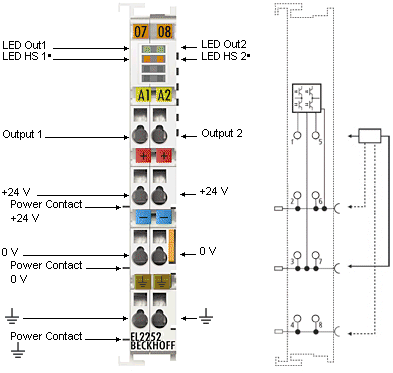

EL2252 - LEDs and connection

OUT 1
OUT 2

green

off

No output signal is present at the respective output

on

+24 V output signal at the corresponding output

HS 1•
HS 2•

orange

off

Output switched according to LED OUT1 or LED OUT2

on

Output 1 or 2 switched to high-resistance

Output 1

1

Output 1

+ 24 V

2

+24 V (internally connected to terminal point 6 and positive power contact)

0 V

3

0 V (internally connected to terminal point 7 and negative power contact)

⏚

4

Ground

Output 2

5

Output 2

+ 24 V

6

24 V (internally connected to terminal point 2 and positive power contact)

0 V

7

0 V (internally connected to terminal point 3 and negative power contact)

⏚

8

Ground
