Process image - EP1098-0001

Channel 1 to Channel 8

You will find the 8 digital inputs to the module (here using the EP1098-0001 as an example) under Channel 1 to Channel 8.

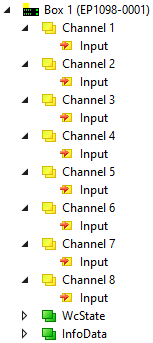

Fig.5: EP1098-0001, Process image
