EL34x3 | 3-Phase Power Measurement Terminal · 0 次阅读

Sync Manager (SM)

The scope of the offered process data can be viewed on the “Process data” tab in the TwinCAT System Manager (see fig. Process data tab SM2, EL34x3 + Process data tab SM3, EL34x3).

Sync Manager (SM) 1:

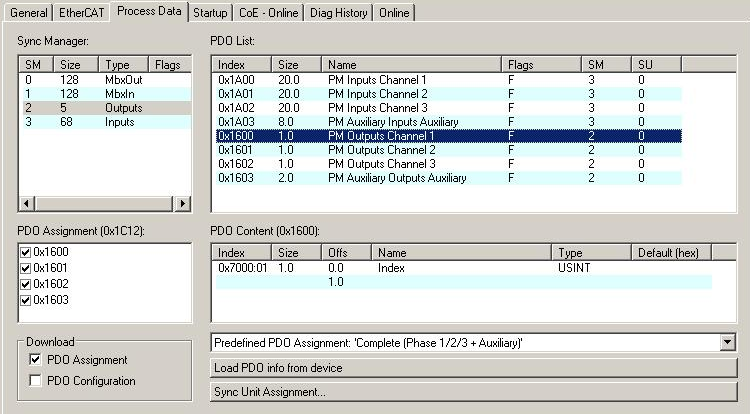

Process Data tab SM2, EL34x3
Sync Manager (SM) 2:

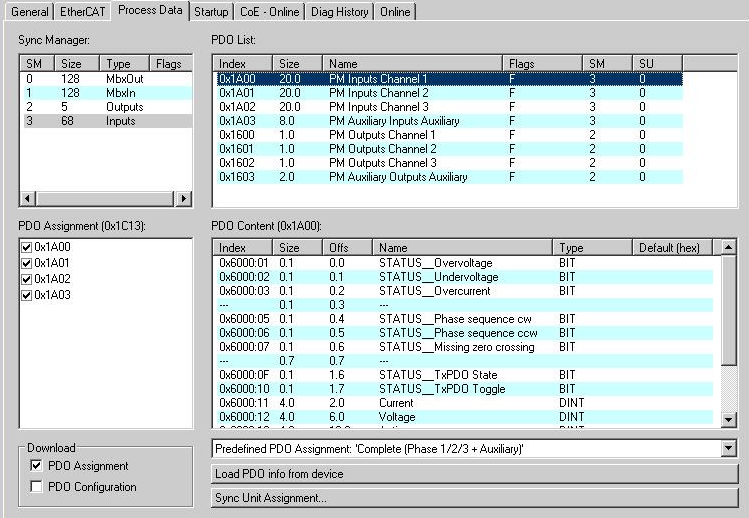

Process Data tab SM3, EL34x3

PDO Assignment

SM2, PDO assignment 0x1C12

Index

Index of excluded PDOs

Size (Byte. Bit)

Name

PDO content

0x1600 (default)

-

1.0

PM Outputs
Channel 1

Index 0x7000:01 - Index

0x1601(default)

-

1.0

PM Outputs
Channel 2

Index 0x7010:01 - Index

0x1602 (default)

-

1.0

PM Outputs
Channel 2

Index 0x7020:01 - Index

0x1603 (default)

-

2.0

PM Auxiliary Outputs Auxiliary

Index 0x7030:01 - Index
Index 0x7030:02 - Channel

SM3, PDO Assignment 0x1C13

Index

Index of excluded PDOs

Size (Byte. Bit)

Name

PDO content

0x1A00 (default)

-

20.0

PM Inputs
Channel 1

Index 0x6000:01 - STATUS_Overvoltage
Index 0x6000:02 - STATUS_Undervoltage
Index 0x6000:03 - STATUS_Overcurrent
Index 0x6000:05 - STATUS_Phase sequence cw
Index 0x6000:06 - STATUS_Phase sequence ccw
Index 0x6000:07 - STATUS_Missing zero crossing
Index 0x6000:0F - STATUS_TxPDO State
Index 0x6000:10 - STATUS_TxPDO Toggle
Index 0x6000:11 - Current
Index 0x6000:12 - Voltage
Index 0x6000:13 - Active power
Index 0x6000:14 - Index
Index 0x6000:1D - Variant value

0x1A01 (default)

-

20.0

PM Inputs
Channel 2

Index 0x6010:01 - STATUS_Overvoltage
Index 0x6010:02 - STATUS_Undervoltage
Index 0x6010:03 - STATUS_Overcurrent
Index 0x6010:05 - STATUS_Phase sequence cw
Index 0x6010:06 - STATUS_Phase sequence ccw
Index 0x6010:07 - STATUS_Missing zero crossing
Index 0x6010:0F - STATUS_TxPDO State
Index 0x6010:10 - STATUS_TxPDO Toggle
Index 0x6010:11 - Current
Index 0x6010:12 - Voltage
Index 0x6010:13 - Active power
Index 0x6010:14 - Index
Index 0x6010:1D - Variant value

0x1A02 (default)

-

20.0

PM Inputs
Channel 3

Index 0x6020:01 - STATUS_Overvoltage
Index 0x6020:02 - STATUS_Undervoltage
Index 0x6020:03 - STATUS_Overcurrent
Index 0x6020:05 - STATUS_Phase sequence cw
Index 0x6020:06 - STATUS_Phase sequence ccw
Index 0x6020:07 - STATUS_Missing zero crossing
Index 0x6020:0F - STATUS_TxPDO State
Index 0x6020:10 - STATUS_TxPDO Toggle
Index 0x6020:11 - Current
Index 0x6020:12 - Voltage
Index 0x6020:13 - Active power
Index 0x6020:14 - Index
Index 0x6020:1D - Variant value

0x1A03 (default)

-

8.0

PM Auxiliary Inputs Auxiliary

Index 0x6030:10 - STATUS_TxPDO Toggle
Index 0x6030:11 - Index
Index 0x6030:12 - Channel
Index 0x6030:13 - Value

Table 1: PDO assignment of the SyncManager
