EJ2521-0224, EJ2522 | Pulse train output module, incremental encoder simulation module · 0 次阅读

1. EJ252x - Pulse train output modules, incremental encoder simulation module
2. EJ2521-0224 - Product Description
3. Connection

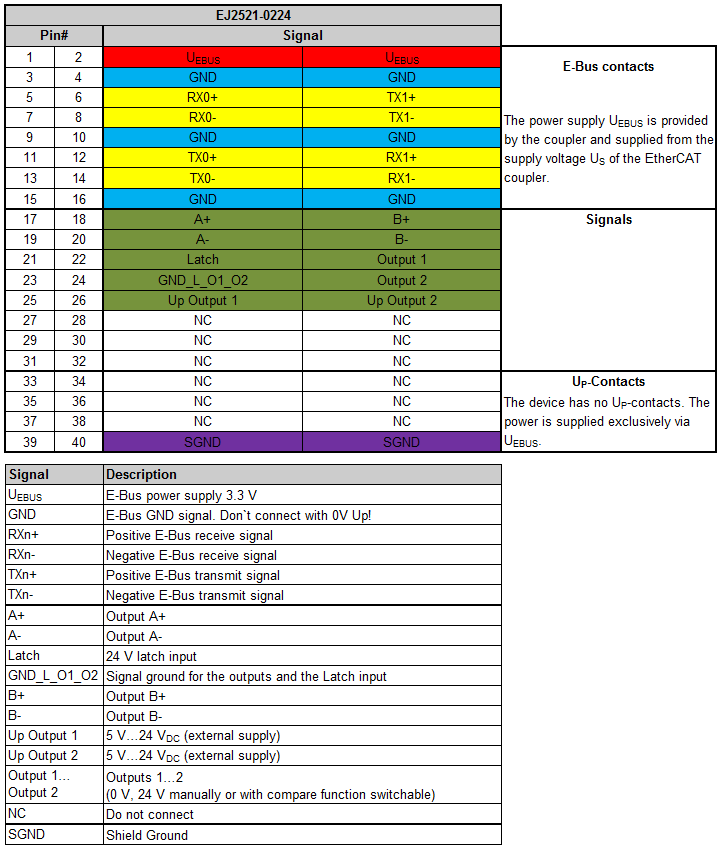

Connection

The PCB footprint can be downloaded from the Beckhoff homepage.

Note

Damage to devices possible!

• The pins named with “NC” must not be connected.

• Before installation and commissioning read the chapters Installation of EJ modules and Commissioning!

Further Information

• Connection to optocoupler (with external supply voltage)
