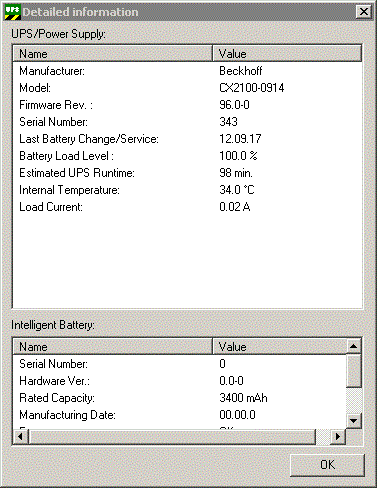

UPS Info dialog
This dialog shows the detailed UPS information. Depending on the hardware model there is more or less information available.
UPS/Power Supply:
- Manufacturer: Manufacturer name.
- Model: Model name.
- Firmware Rev.: Firmware revision.
- Serial Number: Serial number.
- Last Battery Change/Service: [dd.mm.yy] or [mm/dd/yy].
- Battery Load Level: [%].
- Estimated UPS Runtime: [min]
- Internal Temperature: [°C]
- Load Current: [A]
- UPS Fan Status: Values: OK (fan is ok) or ERROR (fan is not ok). Beckhoff P24Vxxxx with firmware version >= 45.1.I only.
- UPS Fan Speed: Beckhoff P24Vxxxx with firmware version >= 45.1.I only. The nominal fan speed is ~3000 RPM or ~10000 RPM.
- Battery Voltage: [V].
- Nominal Battery Voltage: [V].
- Input Line Voltage: [V].
Intelligent Battery (e.g.: CX2100-0914):
- Serial Number: Serial number.
- Hardware Ver.: [major.minor-build].
- Rated Capacity: [mAh].
- Manufacturing Date: [dd.mm.yyyy]
- Fuse: Values: OK (fuse is ok) or ERROR (fuse is broken/blown or not available). Available only in the second generation of UPS hardware/firmware and implemented in Beckhoff UPS Software version >= 3.0.018.
- Over Temperature: Values: OK (temperature is ok) or ERROR (over temperature detected, charging of the battery is stopped). Available only in the second generation of UPS hardware/firmware and implemented in Beckhoff UPS Software version >= 3.0.018.
- Under Temperature: Values: OK (temperature is ok) or ERROR (under temperature detected and charging of the battery is stopped). Available only in the second generation of UPS hardware/firmware and implemented in Beckhoff UPS Software version >= 3.0.018.
