Laplacian filter

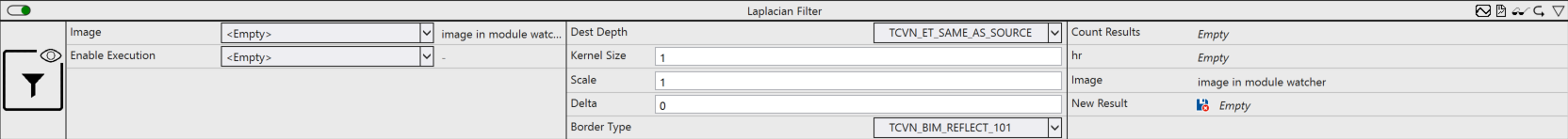

Laplacian filter 1:

Applies a Laplace filter to an image.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • Dest Depth: Depth of the original image.
  • Kernel Size: (Optional) Aperture size for calculating the second derivative filter (1, 3, 5, ..., 31).
  • Scale: (Optional) Scaling factor for the calculated derivative values.
  • Delta: (Optional) Delta value that is added to the results before saving.
  • Border Type: (Optional) Treatment of the image border.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • Image: Initial image of the algorithm.
  • New Result: (Optional) TRUE if a new result is provided.
