Mounting and demounting

The CU15xx converters are mounted on the mounting surface with the aid of a 35 mm DIN rail  (according to EN 60715).

Mounting rail installation Please ensure that the CU15x1 engages properly on the mounting rail.

Mounting

• Fit the mounting rail to the planned assembly location.
• Position the device in the mounting rail with the spring at the top of its latching flange (1)
• Push the lower side of the device (2) against the mounting surface until it latches on the mounting rail.
• Attach the cable.

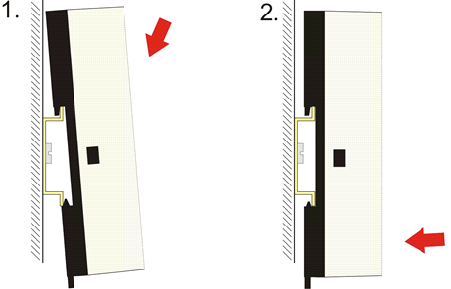

Fig.13: Mounting

Removal

• Remove all the cables.
• Pull the strap on the underside of the device (1) downwards with a screwdriver
• Pull the device upwards away from the mounting surface (2)

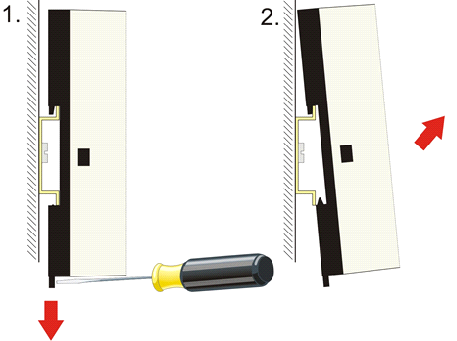

Fig.14: Removal
