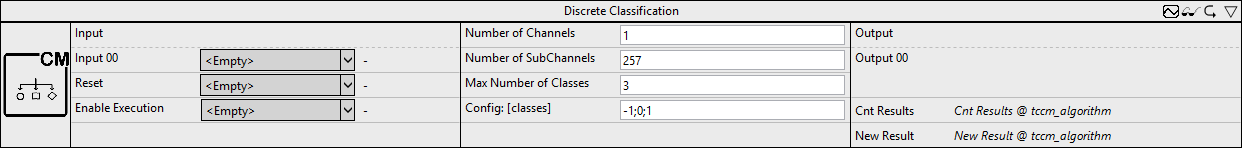

Discrete Classification

Classification of multi-channel data based on configurable threshold values.

The documentation of the corresponding PLC function block can be found here: FB_CMA_DiscreteClassification

Configuration options

• Number of Channels: defines the number of independent channels. This must be greater than zero.
• Number of SubChannels: defines the number of independent subchannels. This value is automatically adjusted to the length of the linked input array. If multiple channels are used, all lengths must match.
• Max Number of Classes: defines the maximum number of classes that will be configured. The value must be at least one.
• Config: [classes]: definition of the configurable threshold values.

Output values

• Output: output array with identical length of the input array, which contains the classifications of the entries.
• Cnt Results: specifies the number of output arrays calculated.
• New Result: is a Boolean value that indicates whether a new result was obtained in the current cycle.
