Mounting and demounting

The terminal modules are fastened to the assembly surface with the aid of a 35 mm mounting rail (e.g. DIN rail TH 35-7.5 according to EN 60715a).

WARNING

Risk of electric shock and damage of device!

Bring the bus terminal system into a safe, powered down state before starting installation, disassembly or wiring of the Bus Terminals!

Mounting

  • Fit the mounting rail to the planned assembly location.

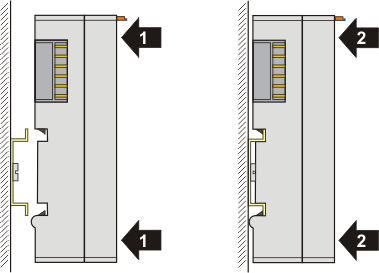

  • Mounting and demounting 1:
    and press (1) the terminal module against the mounting rail until it latches in place on the mounting rail (2).
  • Attach the cables.

Demounting

  • Remove all the cables.
  • Lever the unlatching hook back with thumb and forefinger (3). An internal mechanism pulls the two latching lugs (3a) from the top hat rail back into the terminal module.

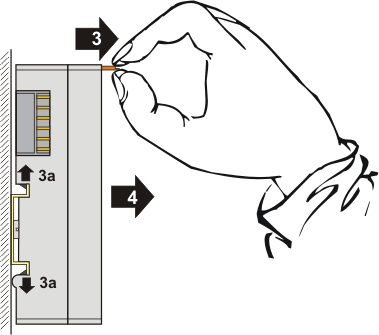

  • Mounting and demounting 2:
  • Pull (4) the terminal module away from the mounting surface.
