KL1184 - Introduction

Bus terminal, 4-channel digital input, 24 V_DC, 3 ms, ground switching

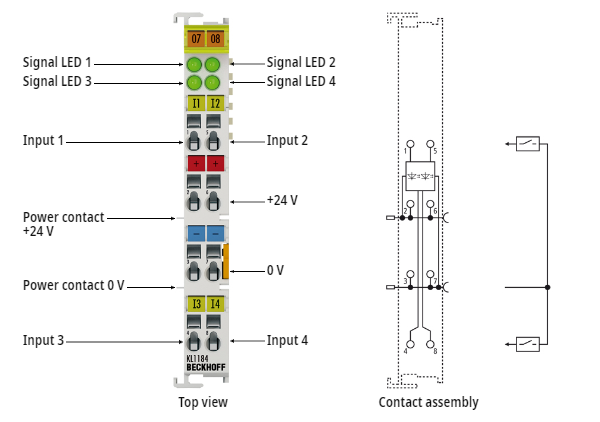

The KL1184 digital input terminal acquires the binary control signals (24 V_DC) from the process level and transmits them, in electrically isolated form, to the higher-level automation device. The bus terminal contains four channels that indicate its signal state by means of light emitting diodes.

• KL1184 - Technical data
• KL1184 - LEDs and connection
