Data processing
|
Table of contents |
|---|
The following two diagrams illustrate the internal measurement sequence in the terminal. The first diagram shows the route for measurement of a value, the second diagram shows processing of the value in the terminal.
Measurement sequence

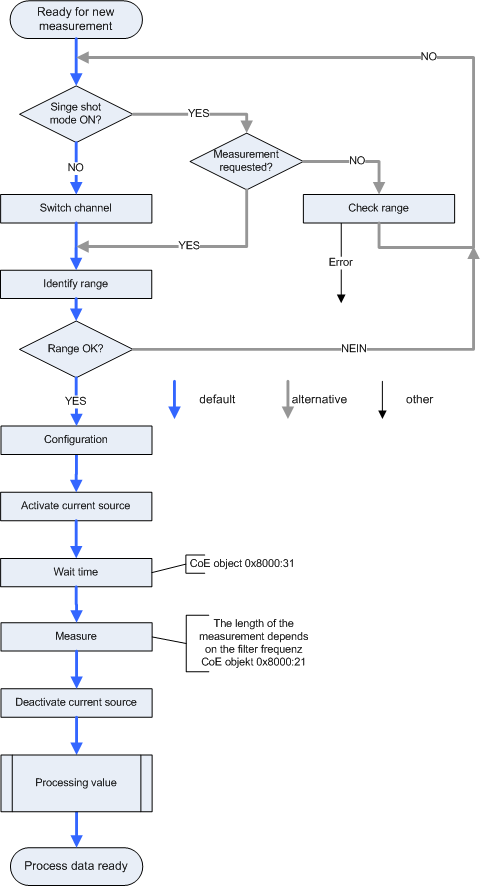

Fig.145: Measurement sequenceProcessing sequence

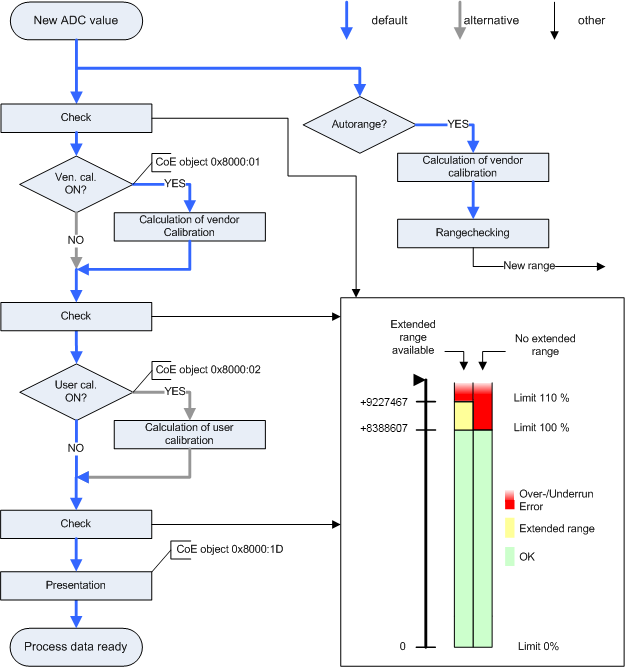

Fig.146: Data processing sequence
