Measuring ranges
The following diagrams show the output values of the measuring ranges as well as the behavior when the limits ranges are exceeded.

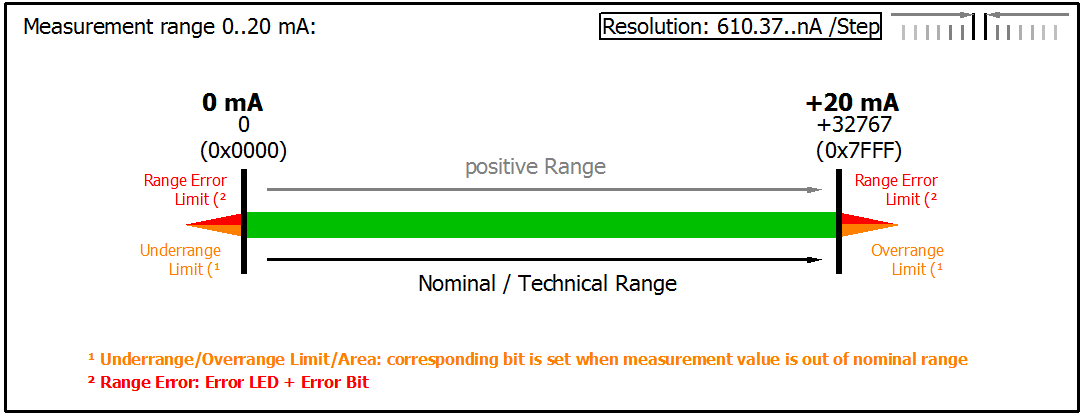

0 … 20 mA

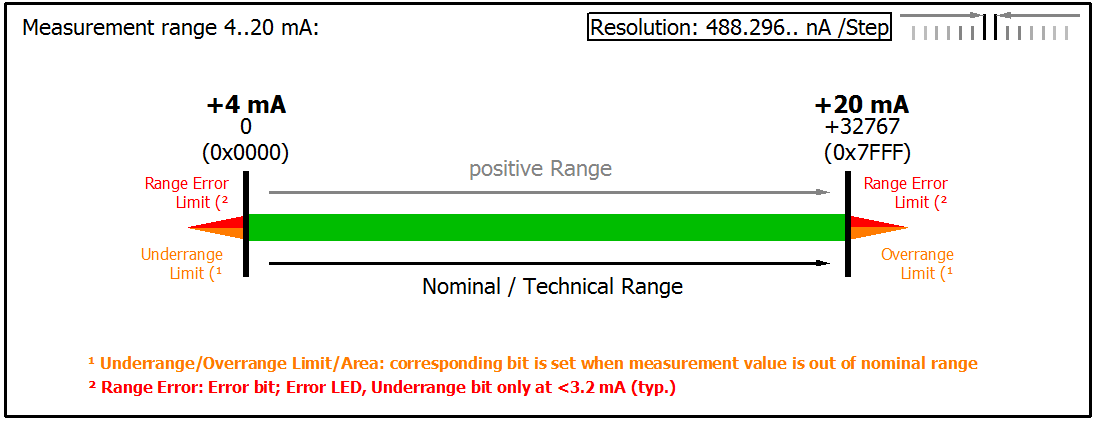

4 … 20 mA

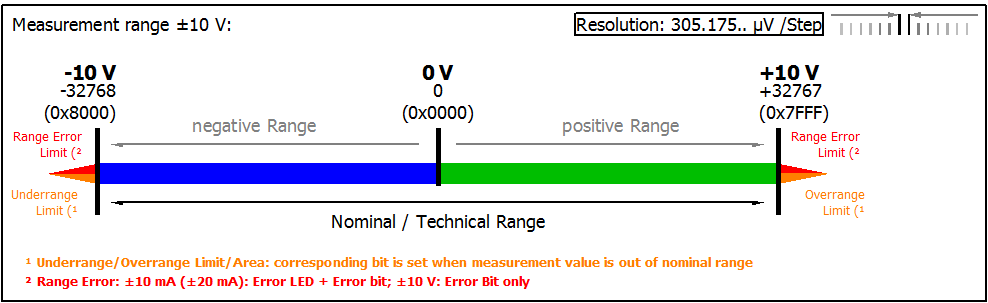

-10 …+10 V

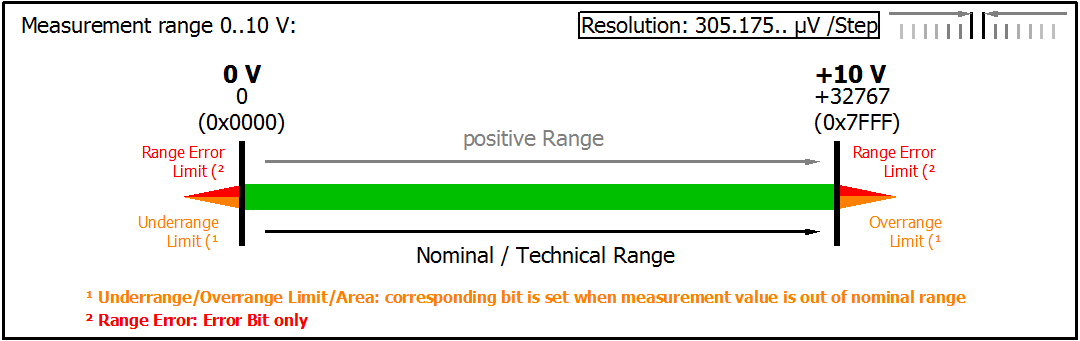

0 … 10 V
