EL7062 | 2-channel stepper motor interface with incremental encoder · 0 次阅读

Dynamics

The acceleration time is set quite high in the factory setting. The motor accelerates only slowly.

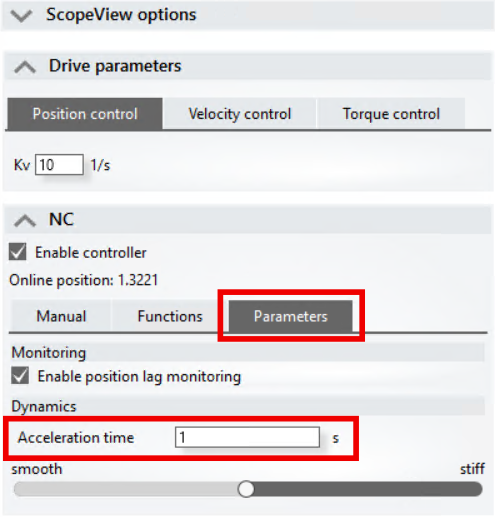

You can set the acceleration time under "Parameters":

Dynamics 1:

Lower acceleration time increases the probability that a following error will occur. If necessary, increase the permissible following error. See chapter Following error monitoring.
