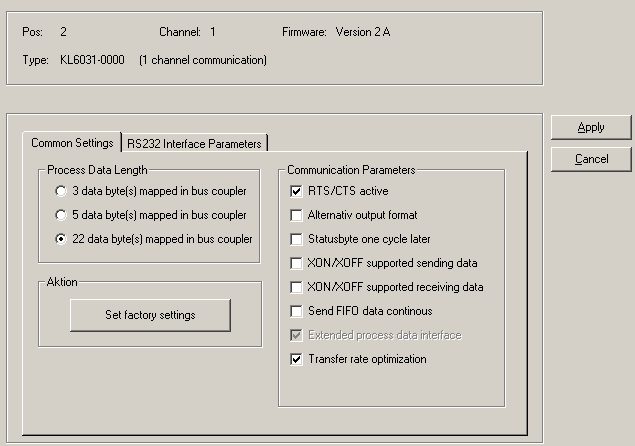

KL6031 - Common Settings

Take Settings for all channels of this terminal

The settings made are adopted for all channels of the terminal (default: deactivated).

Process Data Length (R34.7)

Here, you can set the user data length (3, 5 or 22 bytes) of the process data image (default: 22 bytes).

Set Factory Settings (R7)

Here, you can restore the terminal's factory settings and save them with "Apply".

Communication Parameters

• RTS/CTS activated (R34.0),
  (default: activated)
• Alternative output format (R34.1),
  (default: deactivated)
• Status byte one cycle later (R34.2),
  (default: deactivated)
• XON/XOFF supported sending data (R34.3),
  (default: deactivated)
• XON/XOFF supported receiving data (R34.4),
  (default: deactivated)
• Send FIFO data continuously (R34.6),
  (default: deactivated)
• Extended process data interface (R34.7),
  (set automatically)
• Transfer rate optimization (R34.8),
  (default: activated)
