KL1434 - Introduction

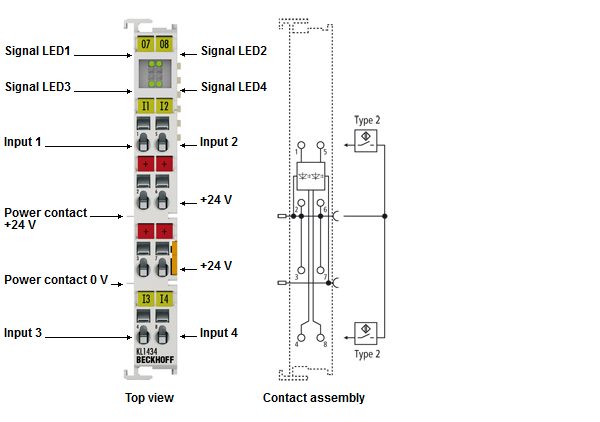

Fig.34: KL1434

Bus terminal, 4-channel digital input, 24 V_DC, 0.2 ms, type 2, 2-wire connection

The KL1434 digital input terminal acquires binary 24 V_DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation system. The bus terminal has four channels, whose signal state is displayed by light emitting diodes.
