TE3500 | Analytics Workbench · 0 次阅读

Draw Contours

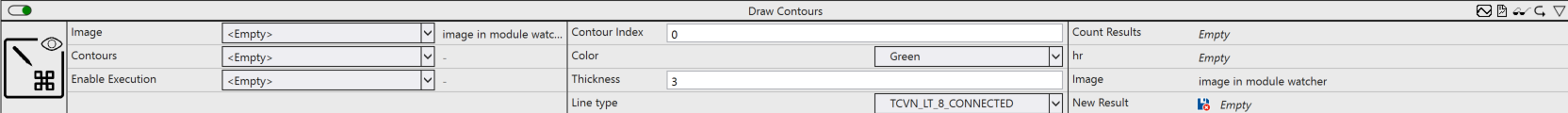

Draw Contours 1:

Draws a single set of points or several sets of points in the image, which are interpreted as contours.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • Contour Index: Index of the contour if a container with several contours is provided at the input.
  • Color: Color of the contour.
  • Thickness: Line width. If the value is negative, the form is filled.
  • Line Type: (Optional) Line type.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • Image: Initial image of the algorithm.
  • New Result: (Optional) TRUE if a new result is provided.
