EtherNet/IP™ Mapping

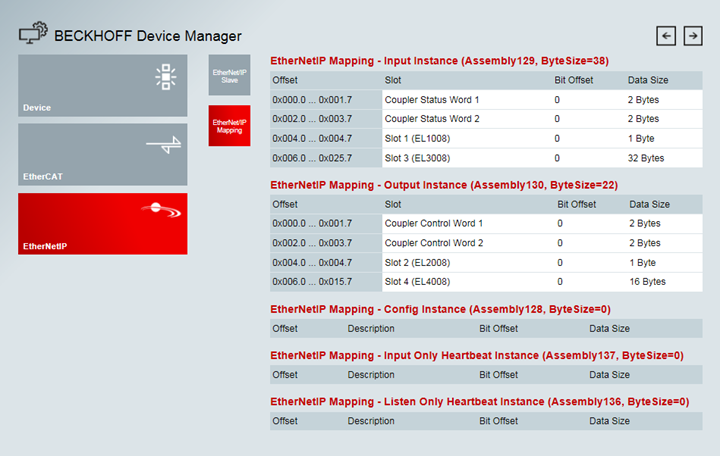

Fig.26: EtherNet/IP™ MappingConfig Instance: 128
Input Instance: 129
Output Instance: 130
Byte Size refers to the size of the process image (Input and Output Data Configuration)
