TE3500 | Analytics Workbench · 0 次阅读

Custom filter

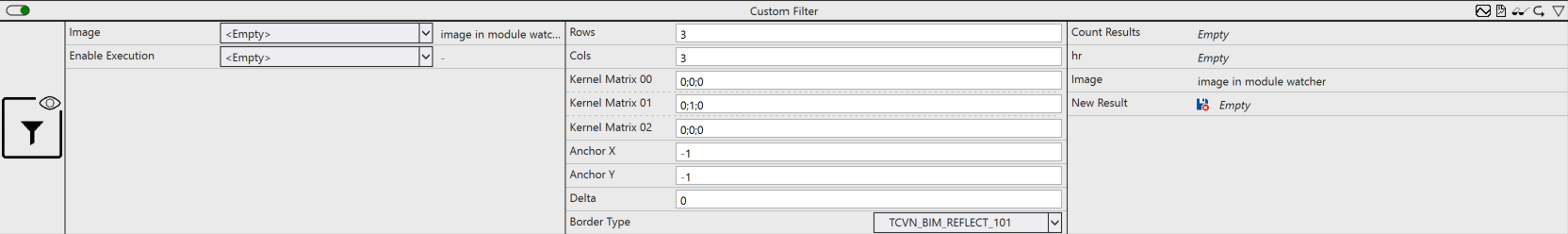

Custom filter 1:

Applies a user-defined filter to the image.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • Rows: Rows of the filter core matrix.
  • Cols: Columns of the filter core matrix.
  • Kernel Matrix: Filter kernel matrix
  • Anchor X: (Optional) The anchor point defines which point of the filter kernel is moved over each pixel of the input image.
  • Anchor Y: (Optional) The anchor point defines which point of the filter kernel is moved over each pixel of the input image.
  • Delta: (Optional) The constant delta is added to the result of the filter operation.
  • Border Type: (Optional) Treatment of the image border.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • Image: Initial image of the algorithm.
  • New Result: (Optional) TRUE if a new result is provided.
