EL2642 - Introduction

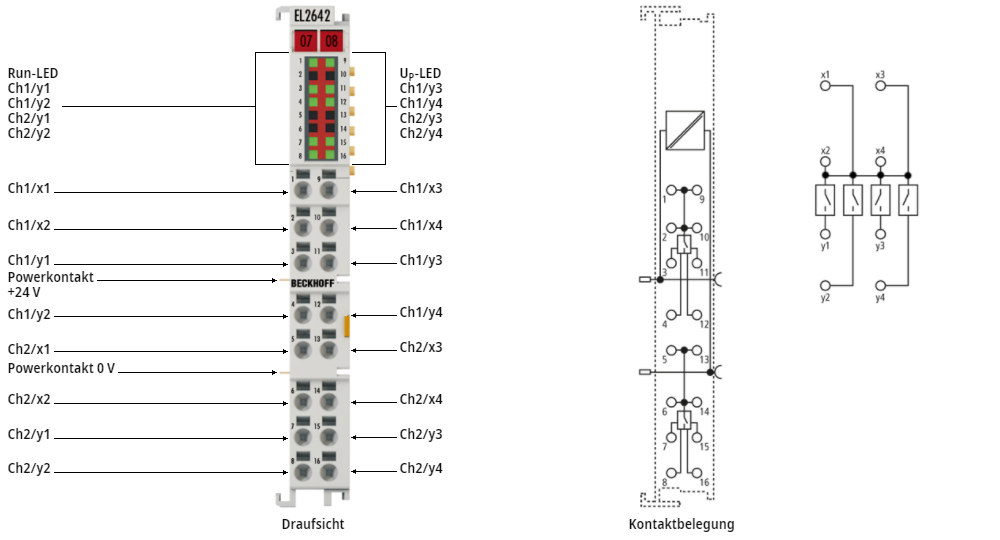

Fig.1: EL26422-channel reed output terminal, multiplexer, 48 V AC/DC, 0.5 A (∑ 2 A), potential-free, 1 x 4
The EL2642 is equipped with reed relays as switching elements that allow fast switching cycles with a long service life. The absolute electrical isolation and the constant contact resistance of the reed switch allow the measurement even of sensitive signals up to fast scanning operation.
