EK1561 - Settings and port assignment
For normal operation the EK1561 can be used with default settings.

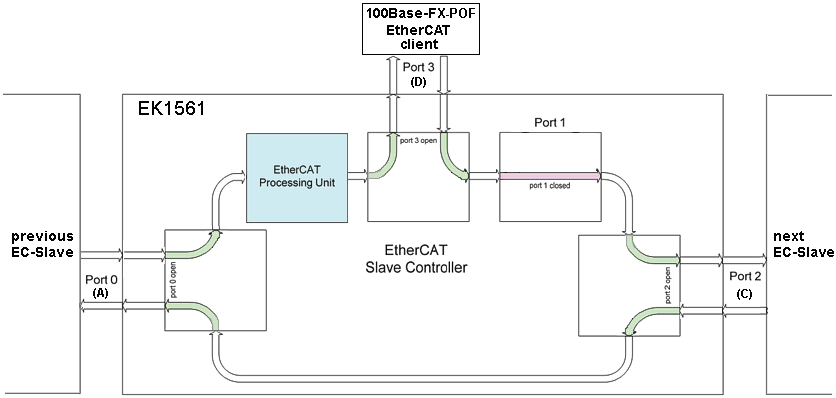

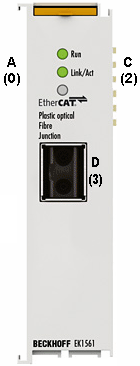

The port ID used in the TwinCAT System Manager is mapped on the EK1561 as follows:
