PLC Configuration

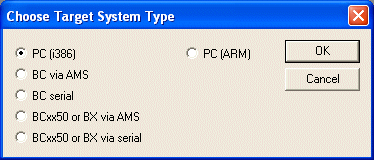

The PLC configuration is dependent on the respectively configured hardware. TwinCAT supports fourdifferent hardware platforms:

• PC (i386): the PLC program runs on the PC or CX10x0.
• PC (ARM): the PLC program runs on a CX9000.
• BCxxxx: the PLC program runs on a buscontroller.
• BCxx50 or BXxxxxx

If you want to run the PLC program on a BCxxxx/BCxx50 or BXxxxx Bus Terminal PLC you can choose whether you want load the program

• via AMS (dependent on the fieldbus)
• via serial interface.
