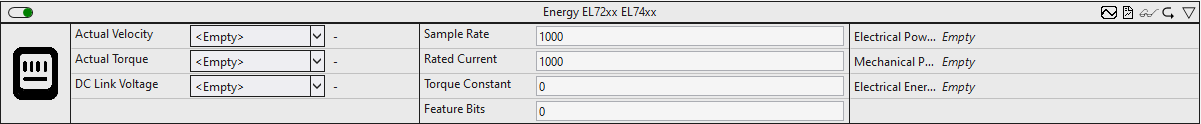

Energy EL72xx EL74xx

The Energy AX72xx EL74xx module is suitable for energy monitoring of EL72xx and EL74xx EtherCAT Terminals. The input data is averaged over a configurable interval and then calculated. To ensure that the required input data is available, it must be added to the process image.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

• Sample Rate: Sample rate of the system to be analyzed in Hz.
• Rated Current: Nominal current in mA.
  Process data: CoE: 0x8011:12.
• Torque Constant: Torque constant in mNm / A.
  Process data: CoE: 0x8011:16.
• Feature bits: Feature bits for specifying the current type.
  Process data: CoE: 0x8010:53.
• Interval (optional): By default, the input data is averaged over an interval of one second.

Input values

• Actual velocity: Actual velocity value.
  Process data: Enable the PDO input 0x1A02.
• Actual Torque: Actual value of the torque.
  Process data: Enable the PDO input 0x1A03.
• DC link voltage: DC link voltage in mV.
  Process data: Enable PDO input 0x1A04 and select "DC link voltage (mV)" in CoE 0x8010:39.

Output values

• Electrical Power [W]: Electrical power in W.
• Mechanical Power [W]: Mechanical power in W.
• Electrical Energy [Wh]: Electrical energy in Wh.
