SlotGroup 5 | 1 multi-function analog output (±10 V, 0...20 mA, 12 bits)
SlotGroup 5 provides a multi-function analog output. This can be parameterized as a voltage output (AO_1xC) or as a current output (AO_1xV). The ModuleGroup is displayed in the "Slots" tab (see fig.)

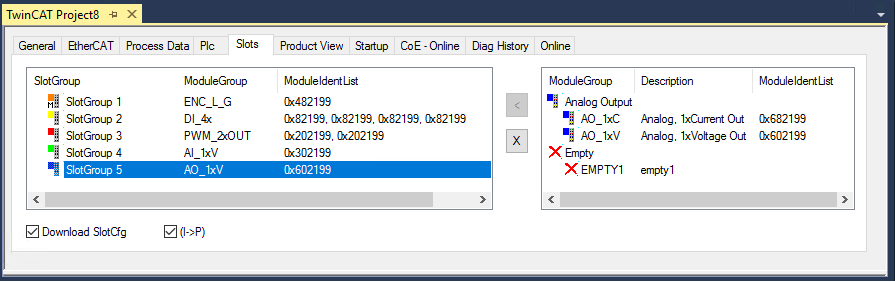

Fig.174: EL8601-8411 - SlotGroup 5The following modules are available
The description of the function can be found in the corresponding ModuleIdent.
ModuleGroup | Description | ModuleIdentList | Further Information | |
|---|---|---|---|---|
Analog output | AO_1xC | Analog 1xCurrent Out (0x682199) | 1 analog output current | Connection terminal points 14 - 16 LEDs 15 – 16 Technical properties SlotGroup 5 Function and parameterization SlotGroup 5 |
AO_1xV | Analog 1xVoltage Out (0x602199) | 1 analog voltage output | ||
Empty | EMPTY1 | empty1 |
| |
