KS2000 - AS-i slave parameters

Current configuration

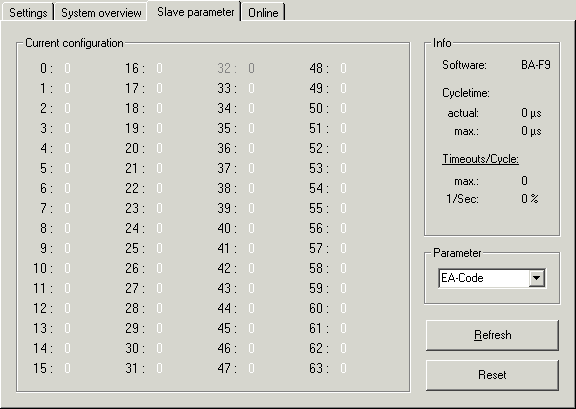

Here you can check the parameters of the connected AS-i slave.

Parameter

Select the required parameter in the check box. It is displayed for all AS-i slaves in the current configuration field.

I/O code

Displays the read I/O codes of the AS-i slaves (parameters 0x90 to 0x97).

ID code

Displays the read standard ID codes of the AS-i slaves (parameters 0x48 to 0x4F).

Parameter

Displays the activation parameters for the AS-i slaves (parameters 0x50 to 0x57).

Status

Displays the read states of the AS-i slaves (parameters 0xA0 to 0xA7).

Timeout

Displays the timeout counters of the AS-i slaves (parameters 0x160 to 0x17F) .

LeaveDataExch

Displays the LeaveDataExch counters of the AS-i slaves (parameters 0x1A0 to 0x1BF).

Physical Fault

Displays the physical fault counter of the AS-i slaves (parameters 0x140 to 0x15F).

Repeat 1 to 5

Displays one of the 5 repeat counters of the AS-i slaves (parameters 0x340 to 0x35F).

Info

Displays further information about the connected AS-i configuration.

Software

Shows the firmware version of the KL6201/KL6211.

Cycle time

Displays the cycle time of the AS-i bus:

• current: current AS-i cycle time
• max.: maximum cycle time so far

Timeouts/Cycle

Displays the timeouts on the AS-i bus:

• max.: maximum number of timeouts that have occurred during a cycle so far
• 1/sec: timeouts relative to the number of AS-i telegrams
