KL3222/KS3222 | 2 Channel Accurate Input Terminals for PT100 (RTD) · 0 次阅读

Settings

The dialog mask for parameterization the KL3222/KS3222 can be found under Settings.

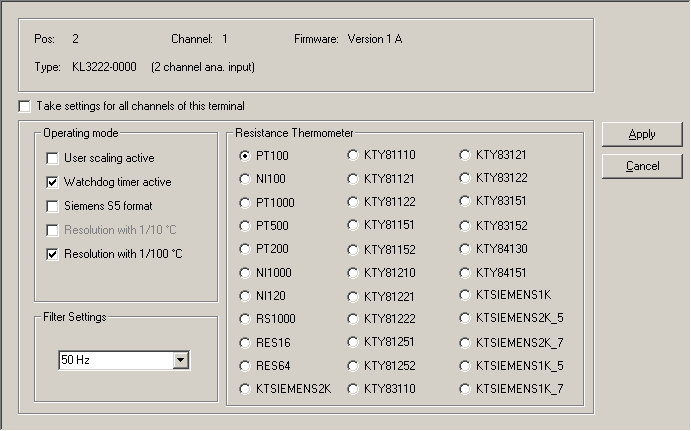

Settings via KS2000

Operation mode

Here you can

  • enable user scaling (R32.0), default value: inactive
  • disable the watchdog timer (R32.2), default value: active
  • enable the Siemens S5 format (R32.4), default value: inactive
  • specify the resolution (R32.5), default value: 1/100 °C (high-precision)

Filter settings

Here you can set the input filter of the terminal (R37).

  • 50 Hz (default value)
  • 60 Hz
  • 100 Hz
  • 500 Hz
  • 1000 Hz
  • 2000 Hz
  • 3750 Hz
  • 7500 Hz
  • 15000 Hz
  • 30000 Hz
  • 5 Hz
  • 10 Hz

Resistance thermometer (sensor type)

Here you can adjust the KL3222 to the connected sensor type (R32.15-R32.08):

  • PT100
  • NI100
  • PT1000
  • PT500
  • PT200
  • NI1000
  • NI120
  • RS1000
  • RTD_RES16
  • RTD_RES64
  • RTD_KTSIEMENS2K
  • KTY81110
  • KTY81121
  • KTY81122
  • KTY81151
  • KTY81221
  • KTY81210
  • KTY81221
  • KTY81222
  • KTY81251
  • KTY81252
  • KTY83110
  • KTY83121
  • KTY83122
  • KTY83151
  • KTY83152
  • KTY84130
  • KTY84151
  • KTSIEMENS1K
  • KTSIEMENS2K_5
  • KTSIEMENS2K_7
  • KTSIEMENS1K_5
  • KTSIEMENS1K_7
