Settings for KL3228-0000

The dialog mask for the parameterization of the KL3228-0000 can be found under Settings.

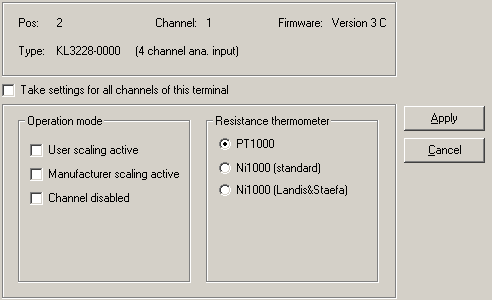

Settings for KL3228-0000 1:
KL3228 - Settings dialog

Operation mode

Here you can

  • activate the user scaling (enUsrScale, R32.0) and
  • the manufacturer scaling (enManScale, R32.1), or
  • disable the channel completely (disChannel, R32.11).

Resistance thermometer (sensor type)

Here you can set the KL3228-0000 to the connected sensor type (R32.15-R32.13):

  • PT1000
  • NI1000 with standard characteristic curve
  • NI1000 with Landis&Staefa characteristic curve (1500 Ω = 100 °C)
