EL663x

If the controller protocol is operated via an EL663x, then an additional menu appears on the devices.

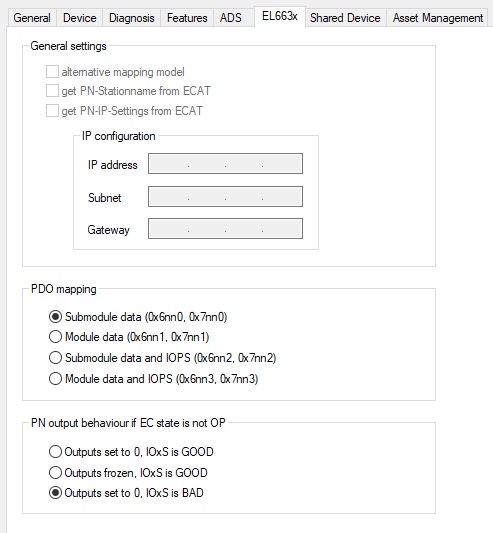

EL663x 1:

Currently only the PDO mapping can be selected for the controller. This sets the form in which the PROFINET process data are mapped to the EtherCAT-side PDOs.
