Logic Operation Counter

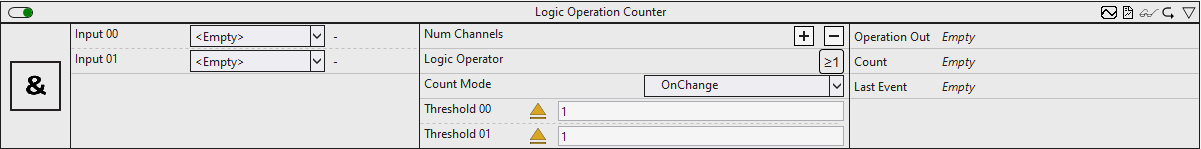

Logic Operation Counter 1:

The Logic Operation Counter executes a logical operation on the values of two or more channels and provides the result of this logical operation. Therefore, each input value can be combined with a threshold and an operator. Furthermore, the logic operator and the count mode can be configured individually.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • Num Channels: adds or removes an input channel.
  • Threshold 00: threshold for the signal of the first channel.
  • Threshold 01 ..n: threshold for the signal of the second to nth channel.
  • Logic Operator: logical operator for the operation:

       Logic Operation Counter 2:  Logical OR

       Logic Operation Counter 3:  Logical XOR (EXCLUSIVE OR)

       Logic Operation Counter 4:  Logical AND

       Logic Operation Counter 5:  Logical NAND (NOT AND)

       Logic Operation Counter 6:  Logical NOR (NOT OR)

  • Count Mode: mode of the result counter.
    OnChange: the counter counts every time the result changes to TRUE.
    Cyclic: the counter increments every cycle when the condition is TRUE.
  • Use Absolute Values: if the checkbox is checked, the absolute values of the input signal are used.
  • Tolerance (optional): tolerance value for the Equal / NotEqual comparisons.

Output values

  • Operation Out: Result of the logical operation.
  • Count: Incremented when the output value is TRUE. The behavior depends on the parameter Count Mode.
  • Last Event: Indicates the time of the last triggered event → the event can be dragged and dropped into the Scope chart to display it as a trigger-event

Standard HMI Controls

For the Logic Operation Counter algorithm, the following HMI controls are available for generating an Analytics Dashboard:

1. The Comparison control visualizes the output values Operation Out and Count as well as the configuration option Logic Operator.

Logic Operation Counter 7:

2. The SingleValue control visualizes the output values Count and Last Event.

Logic Operation Counter 8:

3. The BinaryState control visualizes the output value Operation Out.

Logic Operation Counter 9:

4. The Table Control or Multivalue Control visualizes all output values: Operation Out, Count, Last Event.

Logic Operation Counter 10:
Logic Operation Counter 11:
Logic Operation Counter 12:

Alternatively, customer-specific HMI controls can be mapped in the Logic Operation Counter algorithm using the Mapping Wizard.
