Image Histogram

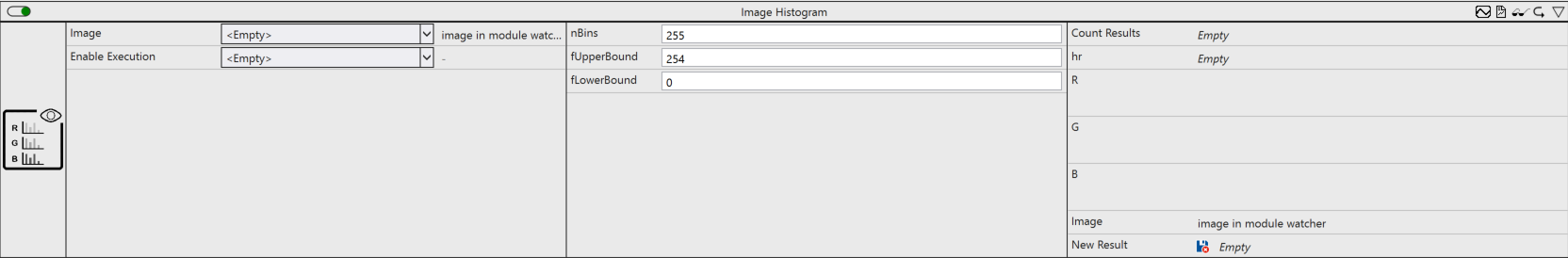

Image Histogram 1:

Calculates the histogram of an image. An RGB image is expected at the input. If no RGB image is provided, automatic conversion takes place internally.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • Bins: Indicates the size of the buffer and thus the number of values that are stored. The number of output channels equals the buffer size.
  • Upper Bound: Upper (exclusive) limit of the last histogram bin nBins-1.
  • Lower Bound: Lower (including) limit of the 0th histogram bin.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • R: Histogram of the red channel
  • G: Histogram of the green channel
  • B: Histogram of the blue channel
  • Image: Initial image of the algorithm.
  • New Result: (Optional) TRUE if a new result is provided.
