Register

Under Register you can directly access the registers of the speed controller terminal. The meaning of the register is explained in the register overview.

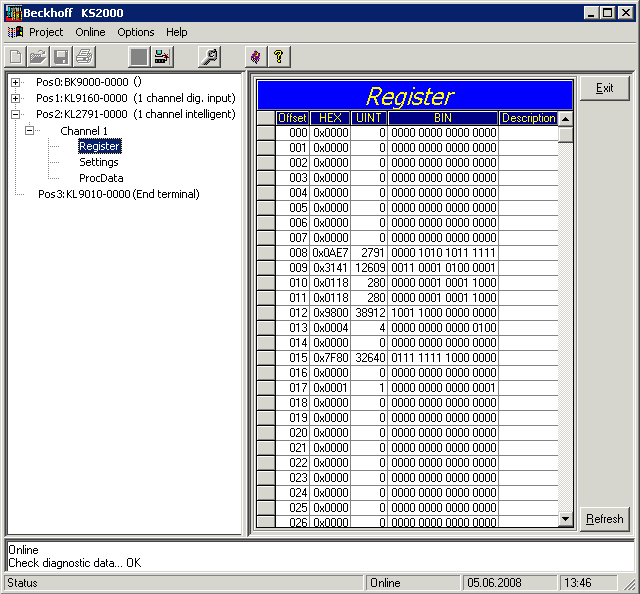

The following picture shows the registers of the KL2791.

Fig.19: Register view in KS2000
