Connection of the wireless adapter

WARNING

Risk of electric shock and damage of device!

Bring the bus terminal system into a safe, powered down state before starting installation, disassembly or wiring of the bus terminals!

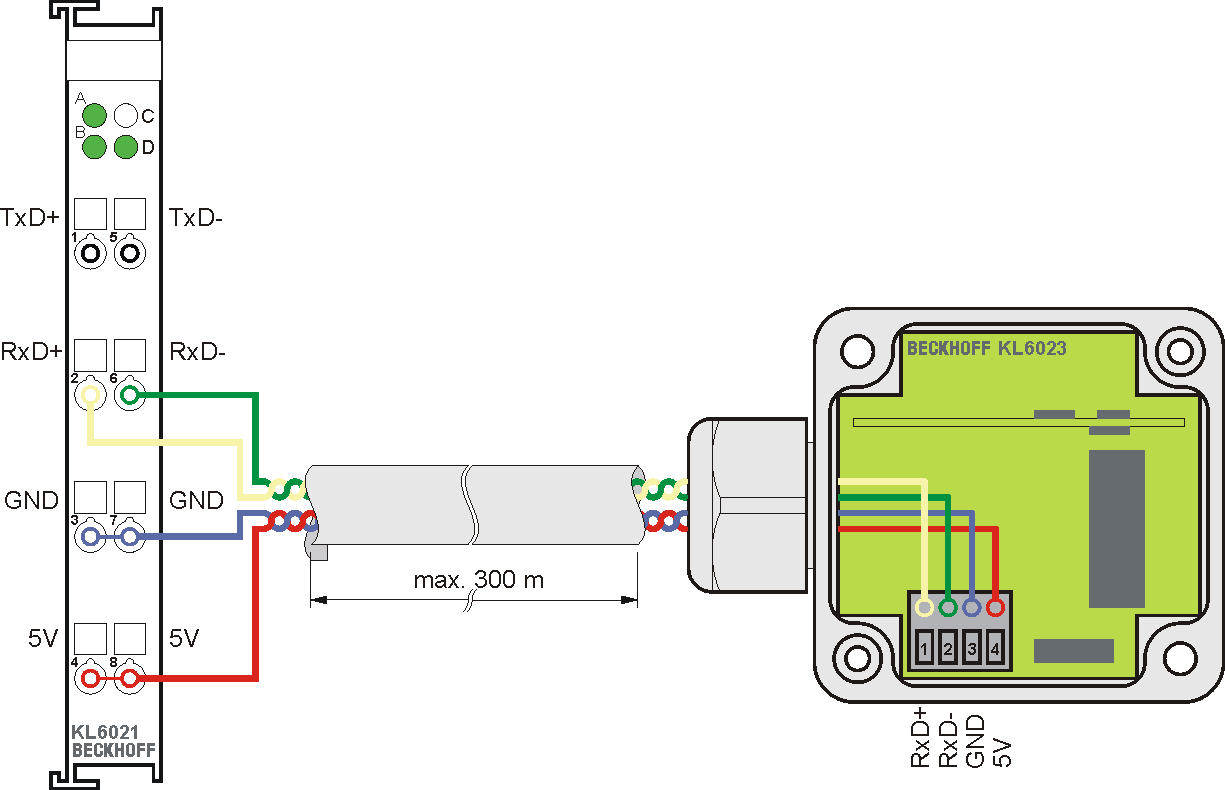

Connection of the wireless adapter 1:
Connection of the wireless adapter

KL6021-0023

KL6023 – Wireless adapter

Signal

Terminal point no.

Signal

Terminal point no.

RxD+

2

RxD+

1

RxD-

6

RxD-

2

GND

3 or 7

GND

3

5 V

4 or 8

5 V

4
