BC8050 and BC8150 | Bus Terminal Controller with RS485 or RS232 Interface · 0 次阅读

BC8050 - Introduction

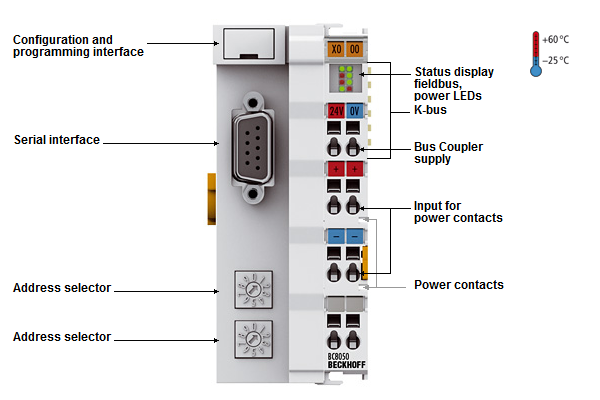

BC8050 - Introduction 1:
BC8050

The BC8050 Bus Terminal Controller with serial RS485 interface extends the Beckhoff small controller series by a cost-optimized version in a compact housing. An open serial protocol – like in the BK8x00 Bus Couplers – and the Modbus RTU/ASCII protocol are implemented. The address and the protocol are selected via the two rotary selection switches.
