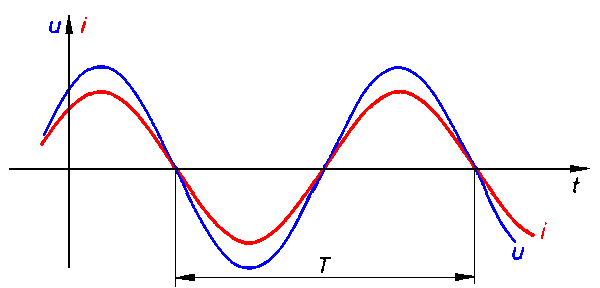

Measuring principle
The EL34x3 terminals operate with 1 analog/digital converter for measuring the current and voltage variables of all three phases.
The measurement and processing of the three phases take place successively (45 µs offset) in exactly the same way. The signal processing for one phase is described below. This description applies correspondingly for all three phases.
