Installation position

Standard installation position

Mount the EL7062 in the standard installation position. Standard installation position means:

The mounting rail is mounted horizontally.
The connection surfaces of the terminal are facing to the front.

The terminals are ventilated from below, which enables optimum cooling of the electronics through convection. "Below" is relative to the acceleration of gravity.

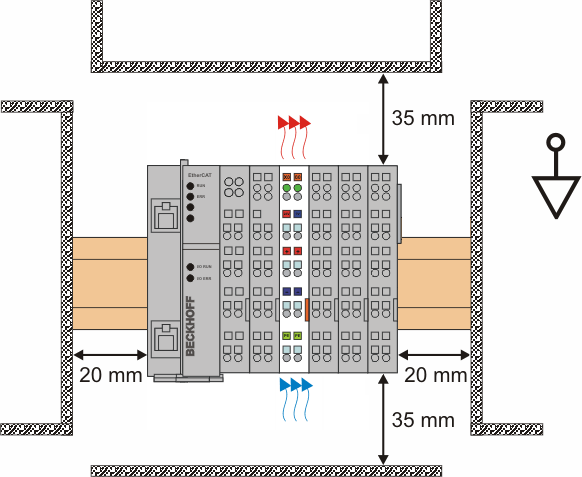

Recommended distances
