AF1000 | Economy variable frequency drive · 0 次阅读

X01 for three-phase devices

Valid for:

  • All three-phase devices in the AF1000 series
        • AF11xx-3xxx
        • AF12xx-3xxx

      Network connection on connection strip X01

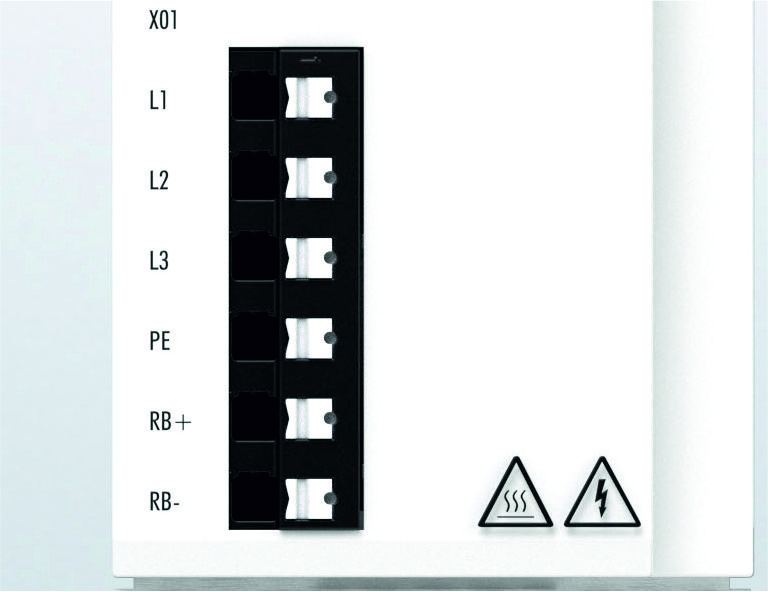

      X01 for three-phase devices 1:

      Feature

      Implementation

      Connection type

      Connection strip

      Contact type

      Direct plug-in technique

      Number of contacts

      6-pin

      Connectable conductors at this connection

      Technical parameter

      Unit

      min.

      max.

      Clamping range

      mm²

      0.34

      4

      Conductor connection cross-section AWG

      AWG

      20

      12

      solid wire H05(07) V-U

      mm²

      0.5

      2.5

      stranded wire H05(07) V-U

      mm²

      0.5

      4

      with AEH with collar DIN46 228/4

      mm²

      0.34

      2.5

      with wire end sleeve DIN46 228/1

      mm²

      0.5

      2.5

      Strip length

      mm

      8

      10

      If single wires or strands are used, the wiring route from the filter to the mains connection must be realized with twisted wires or strands.

      Contact assignment at this connection

      Terminal point

      Connection

      L1

      Phase L1

      L2

      Phase L2

      L3

      Phase L3

      PE

      Protective conductor, PE

      RB+

      External braking resistor +

      RB-

      External braking resistor -
