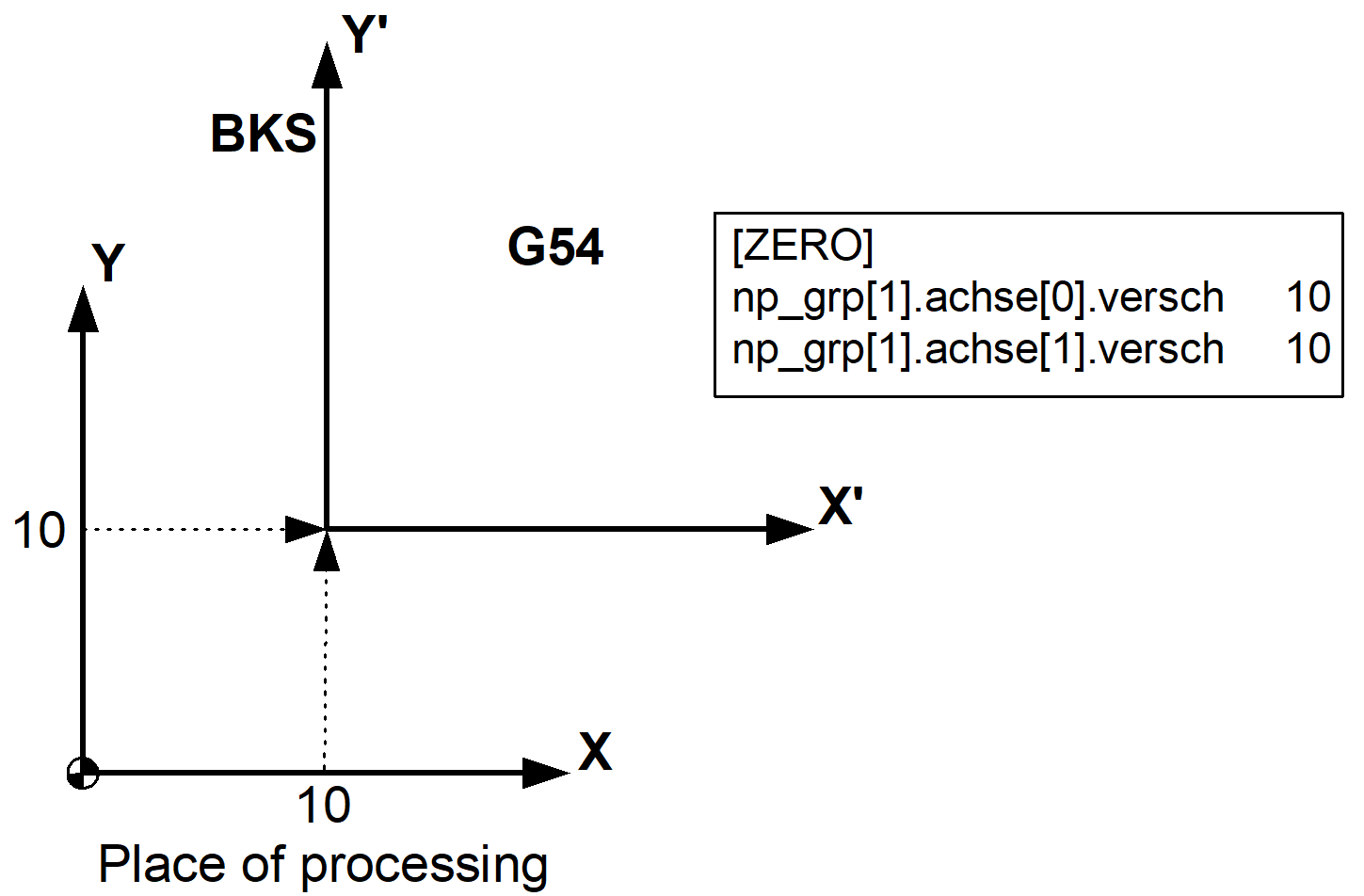

Zero offset

Select: G54, ... G59, G159

The G54 - G59 or G159 commands select the corresponding zero offsets from the zero offset table [ZERO].

Effectiveness

• Active until deselected or up to program end.
• A new offset has no effect until the next absolute programmed position (G90).

Deselect: G53
