Settings

Two dialog masks for parameterization of the KL6831/KL6841 are available under Settings:

  1. Device settings
    • Different address types can be selected to search for SMI devices.
    • The main SMI commands are available for manual control

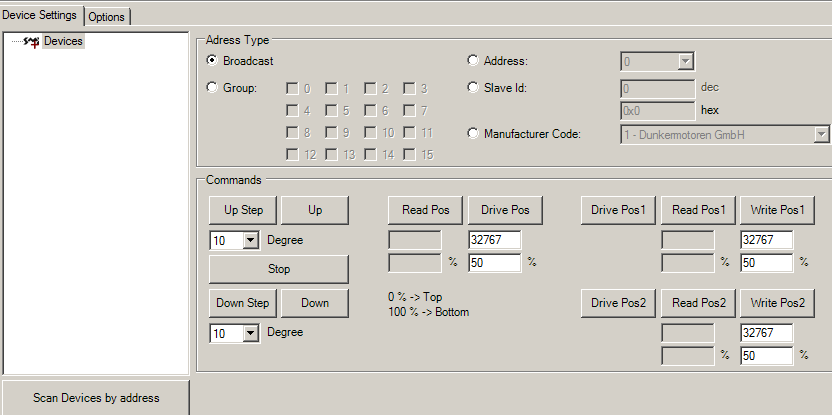

  2. KL6831/KL6841 - device settings via KS2000
  3. Options
    • For setting the behavior of the digital inputs DI1 and DI2.

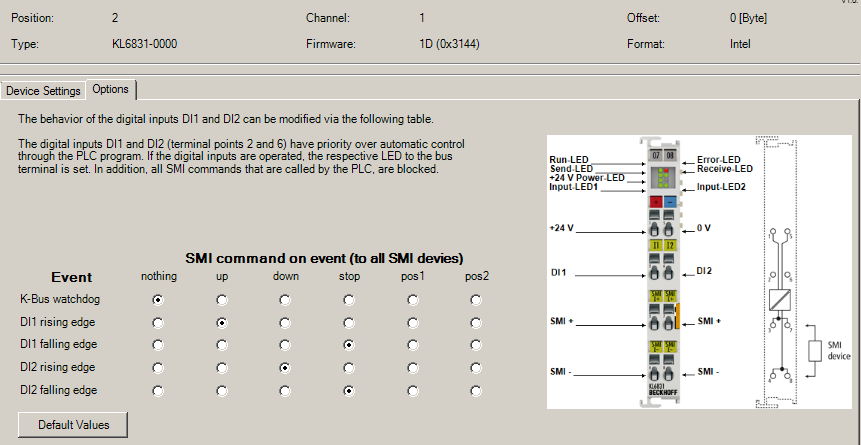

KL6831/KL6841 - setting the behavior of the digital inputs for event
