OPC Configuration
For requirements see Installation Sequence.
After the SimoComU installation the following changes have to be made:
- Start TwinCAT with the valid Profibus configuration
- Start SimoComU

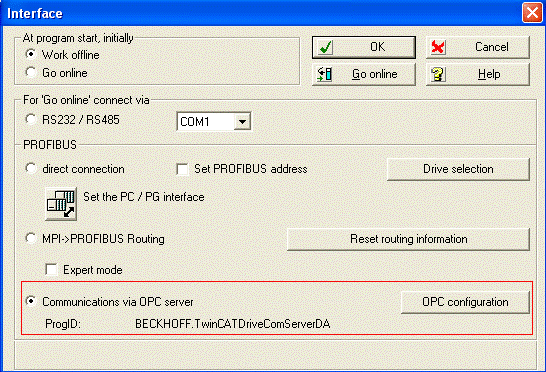

- Configure the OPC server communication in SimoComU (Options|Setting|Communication)

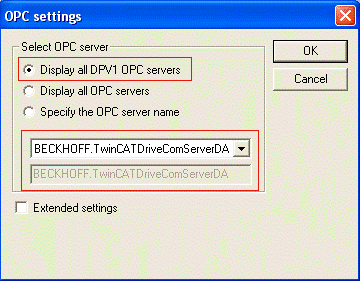

- Select "BECKHOFF.TwinCATDriveComServerDA"

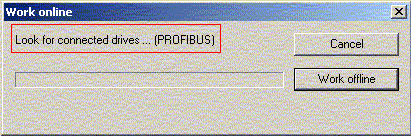

- Search online for ProfiDrives in SimoComU

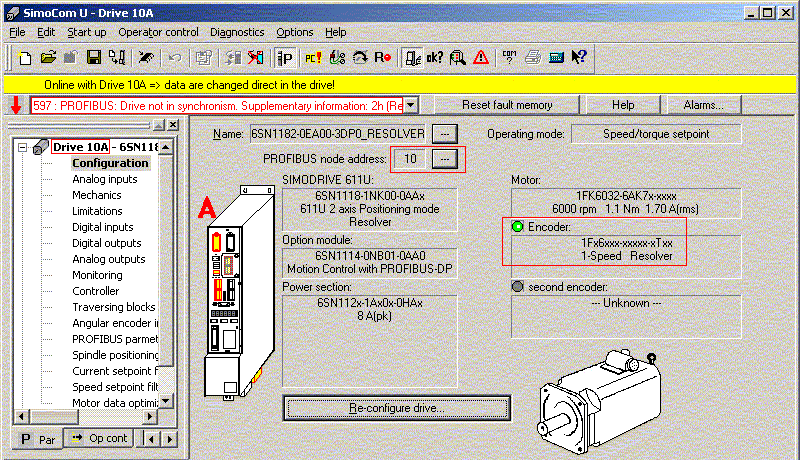

- Configure the ProfiDrive in SimoComU via OPC
